Ive read numerous threads of how members have installed auxiliary power systems in their trucks in order to power their accessories. The consensus I came to is that most people tend to use the 'Blue Seas' systems. Theres nothing wrong with this setup, it just wasn't quite what I was looking for. I wanted something that I could easily access incase of a blown fuse or other issue, but I also wanted something of an 'all inclusive' setup. In other words, I wanted a system where the relays werent in another area of the truck or that id have to make a bracket to attach them to then have to run all the wiring to each of them, plus trying to weatherproof all of it as well. So, off to the internet I went.

I started reading about what the Toyota, Jeep, Raptor, & several other owners were all using. Two systems kept popping up; one was the 'S-Pod' system which is really nice but REALLY expensive & the other was the Bussmann RTMR. The thing that drew me towards the Bussmann is that it comes in many different configurations to match whatever your needs might be. AND, best of all, the whole thing is completely weather proof! Since that seemed to be the perfect match to what I wanted I started looking at how to install it in our particular trucks.

Well, as luck would have it, I came across a website called Bodenzord. Go to his 'older posts' & look for 'DIY Bussmann RTMR Part 1' then follow along with his instructions. This guy shows you how to build the RTMR step-by-step. One word of advise though, make the pigtails MUCH longer than what he instructs to make them, as in anywhere from 14" to 22" long. That way you can maneuver the pigtails around the engine bay to connect your accessories rather than having them bunched up in a big mess.

This guy has EVERYTHING on how to build a Bussmann RTMR. He explains the different types of RTMRs there are & why you should build it a certain way. He explains what tools to use, how to use them & even where to get them. He also goes on to show you how to build the harnesses which are needed to install the Bussmann into your truck. However, there is a catch. Its geared towards the Tacoma guys rather than us. BUT, the information this guy gives is astounding & by the time its all said & done with, youll have a VERY good understanding of how it all works & have built your very own auxiliary power system! AND, this is where I come in, I will (hopefully) get you the rest of the way with completely installing it into your vehicle. So, without any more delays, lets get this thing going. NOTE: to help keep this 'how to' from being 10 pages of instructions, Im going to assume you read the link I provided & have finished building the RTMR & are now at the stage to install it into your truck.


The 1st thing is to find a place to install it. I looked & looked for a place & finally picked the gap by the brake booster & behind the ABS system. Seeing as I was going to be running wires into & out of the cab for switches & whatnot, I figured this would be the best place for it. Plus, at least on my truck, theres a 10mm threaded bolt hole along the wall directly across from the booster. That's how I mounted it. Now, we need to make a bracket for it. I used an old street sign that I had & cut it up. Its light, easy to work with, & fairly strong metal. Heres what I came up with...
The different notches around the bracket are; right side-brake line coming out of ABS system / bottom-so it can fit around brake booster itself / left-so it can fit under bottom side of cowl / inside-so it can fit around RTMR lid snaps

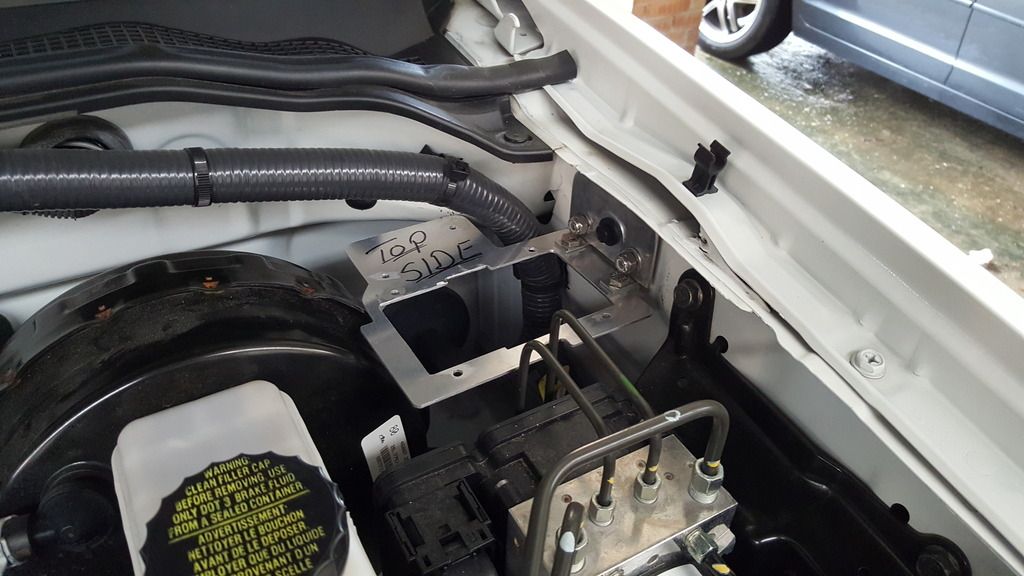

Heres a pic of just the bracket installed showing what I mean about the different notches around the bracket that need to be made & also where the 10mm bolt hole location is.

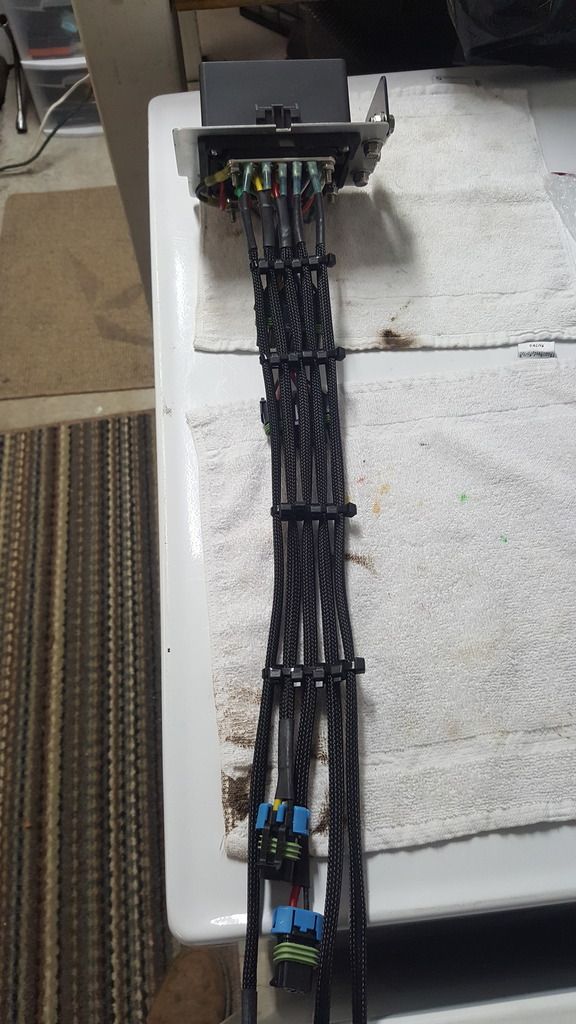

This is a pic of my RTMR with extended pigtails. Note that I wrapped zip-ties around the pigtails so as to help keep them straight when I pushed them under the ABS system. Theyre about 4" apart.

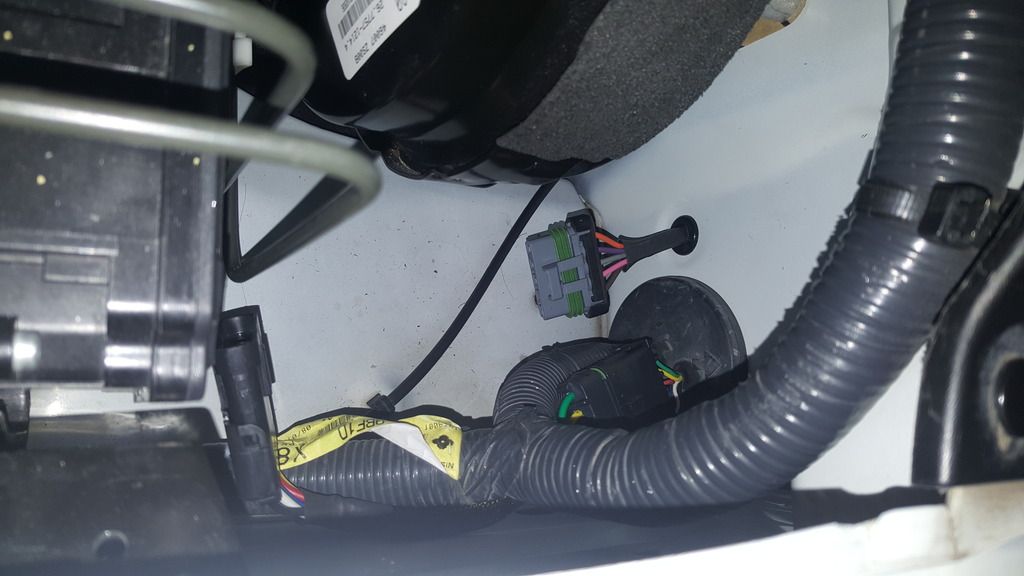

This is a pic of the harness that connects to the RTMR then goes into the cab & then connects to your switches. I terminated the wire, ran it through the grommet, then finished terminating it once I ran it to my switches.



This is the backside of the grommet where the harness comes into the cabin & then up into the dash & over to the switch location.

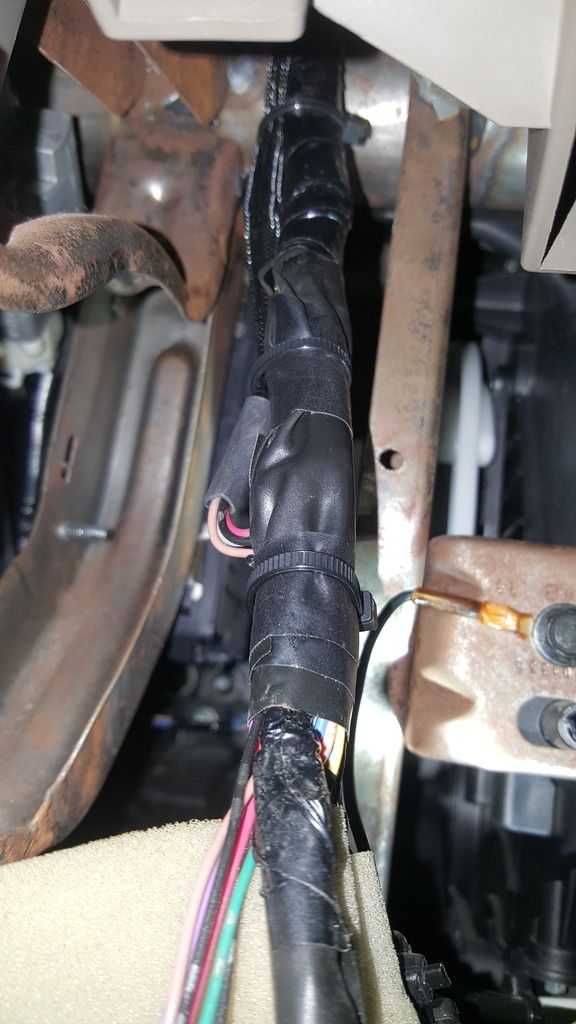

This is where I ran the harness in order to secure them before going to the center stack & eventually connecting to the switches.

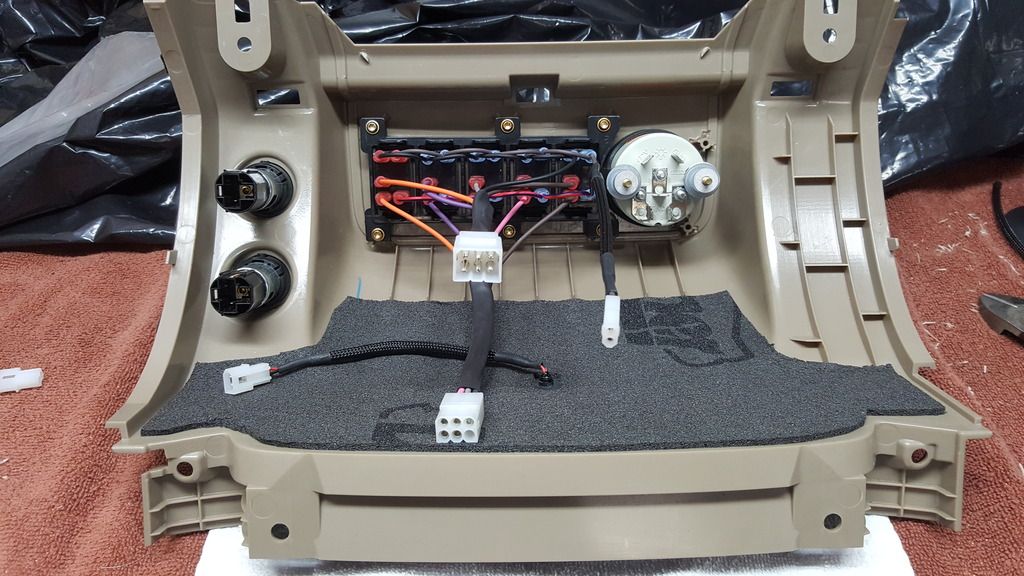

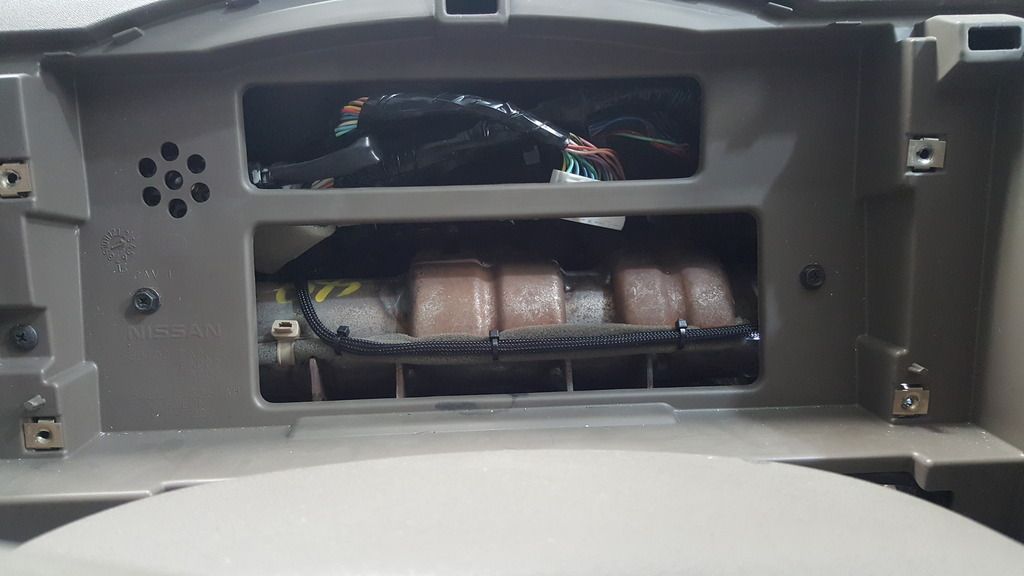

Heres a couple pics showing the backside of the lower portion of the center stack where the harness from the RTMR connects. Since all the connections are inside & not in the weather I made all the terminations with molex connectors. I used the .093" sized terminals since they have a higher amp capacity. I also added abit of dynomat foam to help keep the wires & connectors from rattling around & driving me nuts.


Note: the small wire in the middle of the foam is for a small led light i installed to light up the cubby hole area under the switches. I pulled power for it from one of the power outlets.

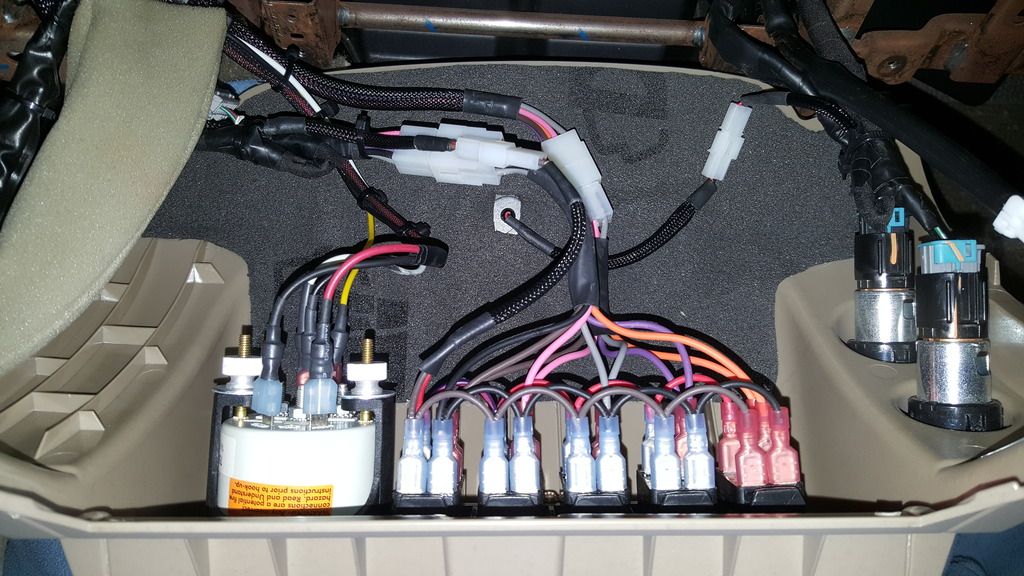

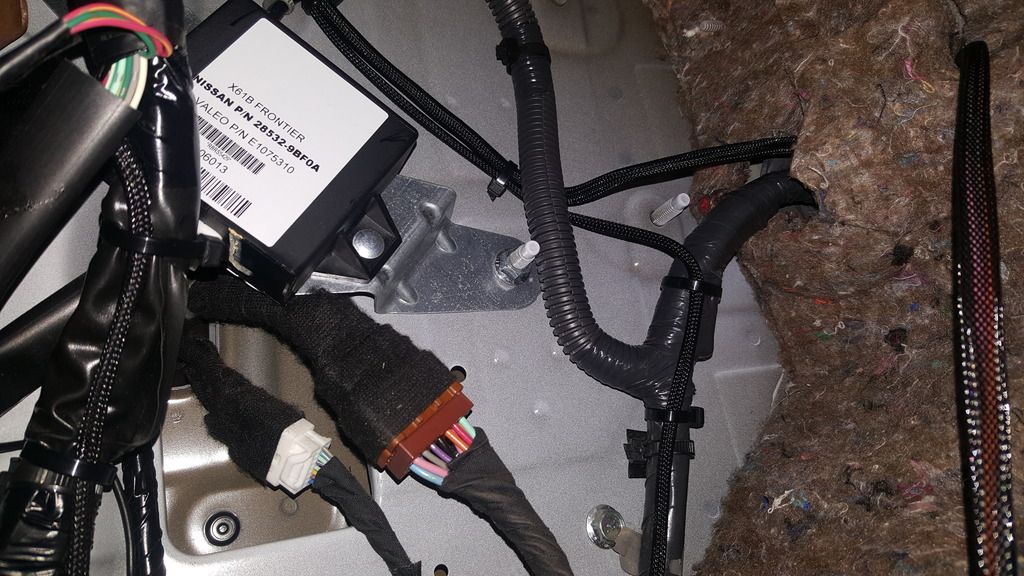

This is a pic of the harnesses connected to the switches. I have a backup camera on my truck & I wasn't sure what would happen if I got rid of the alarm cancel switch so I reconnected it & secured it behind the console. You can also the connection for the led light for the cubby area as well as the wires for my ATF gauge. I also extended the wires for the VDC switch & moved it next to the mirror controls.



This is a crummy pic of where I pulled power to light up the switches so Im able to control them with my dimmer switch in the instrument cluster. I split off from the red & brown wires of the VDC switch (the led light positive & ground wires for the switch) then terminated them into a pigtail jumper for the switches themselves. All the switches dim along with the rest of controls in the truck.

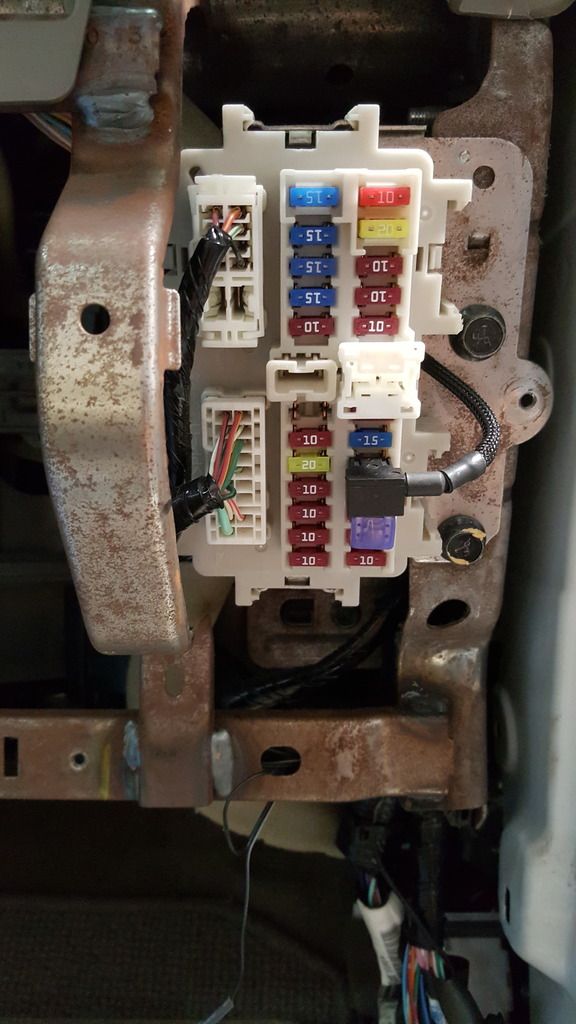

I pulled power from this location of the fuse panel. This connects to the switches then sends power out to the RTMR & activates the relays which in turn powers whatever accessory you have connected.



SUCCESS!! It ALL works!!

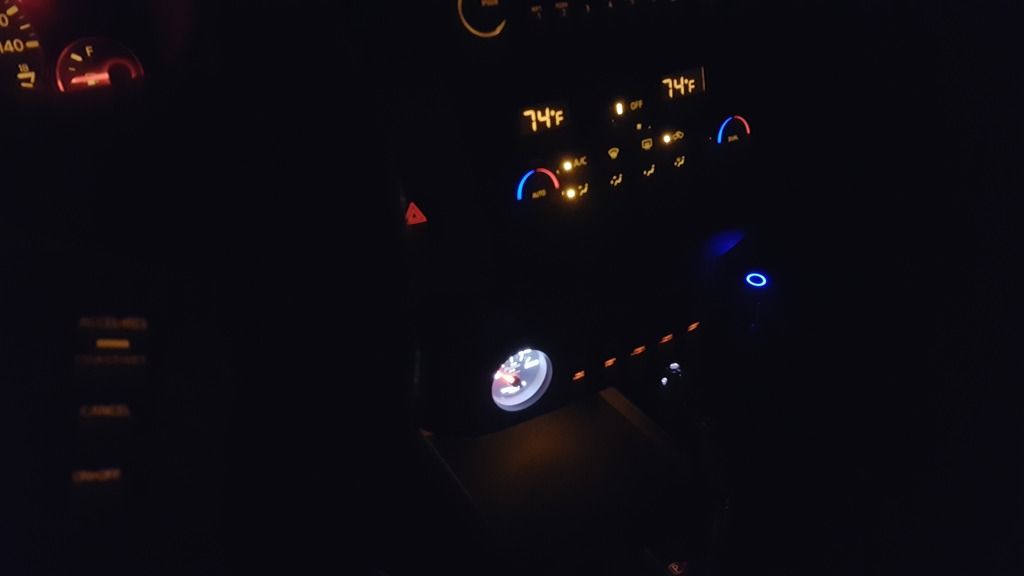

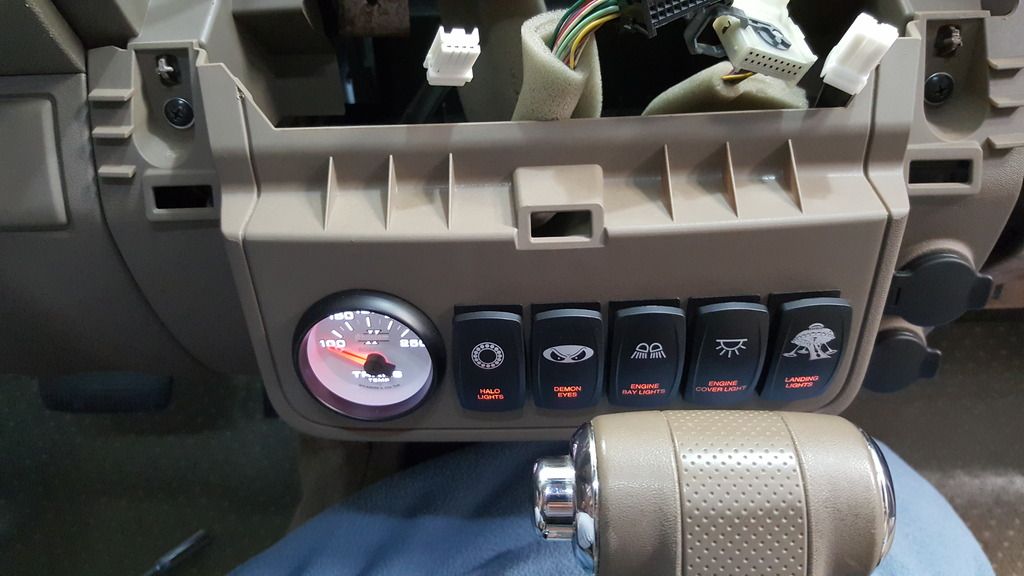

Heres everything all lit up. If you look closely you can see the cubby area under the switches lit up by the little led I installed.

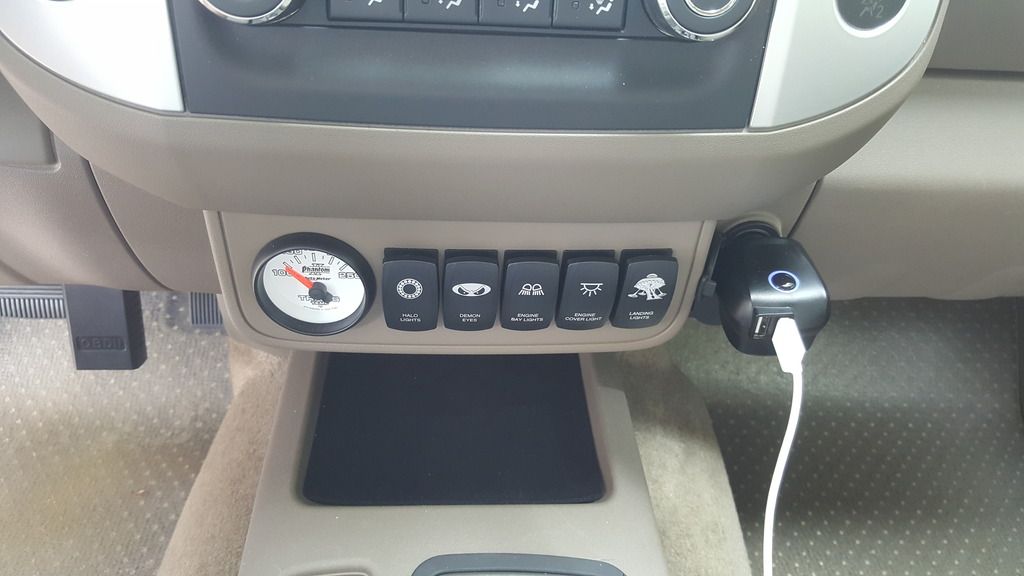

And heres everything all put back together.



This is an 80 amp sealed breaker. Push the red button & it kills the power to the system. A small metal plate under the breaker is used to secure it to the fuse box which keeps it from breaking the plastic if it gets bumped around. Don't worry, the bolts I used are juuust long enough to put a lock nut on.


·
Premium Member
Joined
·
121 Posts
Discussion Starter #2
I reached the 10k limit & had to start another section of the thread. DOH! Anyways, where was I?? Oh yeah.

And here is the system all installed & ready to go to have something connected to it!



Heres another pic showing how it sits in the location I chose to install it in.



And heres one more showing how easy it is to gain access to the relays & fuses if need be.



I wanted to do a real in depth 'how to' on this but just doing this much took me the better part of several hours. I have plenty more pictures of the install if anyone wants/needs a different angle or better quality pics. And just so everyone knows, I work straight nights so if I take awhile to respond to any questions please bear with me. This complete install took me the better part of several months! It ranged from having to gather all the parts, putting them all together, then a LOT of trial & error. Hopefully someone will take on this endeavor & this 'how to' will GREATLY cut down on their installation time. I am DEEPLY proud of myself as to accomplishing this feat seeing how when I started this I wasn't sure even how a relay worked. So, with time & determination, if I can do it then I know for a fact that many MANY of you on this forum can do it as well.

Thank you for looking!


·
